ecotect analysis by Cassandra Brunson + Ebony Goode
photos credit: www.chip2011.com
Monday, December 12, 2011
Tuesday, November 1, 2011
Thursday, October 20, 2011
Thursday, October 13, 2011
sketch series 4

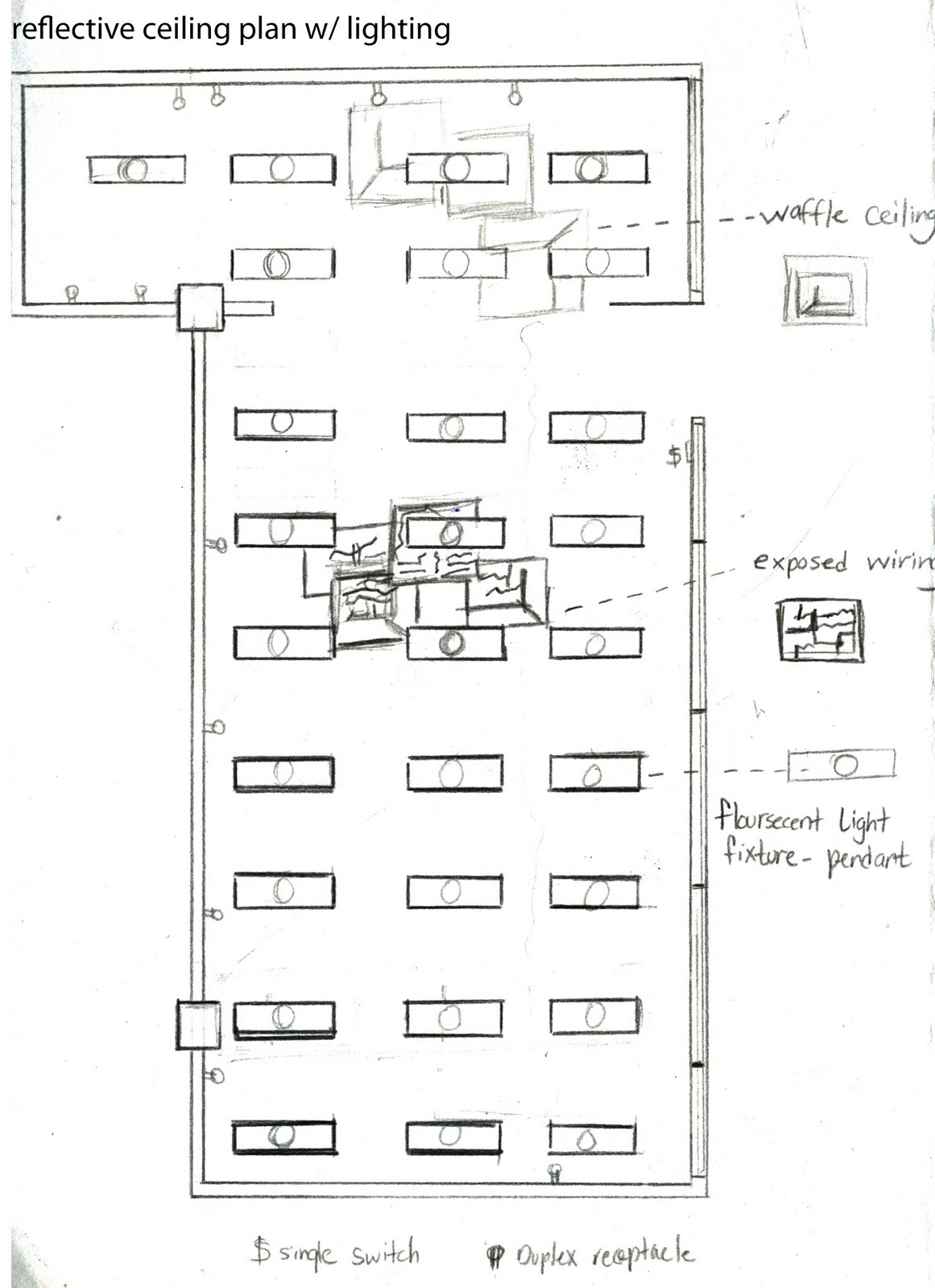

computer lab
a. The space's function is a computer lab.
a. direct/indirect
b. ceiling/suspended
a. The space's function is a computer lab.
b. The purpose of the lamps are for aiding in tasks. They illuminate the workspace.
c. Task lighting is located overhead. Additional lighting emits from the computer screens. Also, desk lamps are provided but are rarely used because the overhead lighting provides ample light.
d. No recommendations. I have always felt there is an adequate and appropriate amount of light for computer driven tasks.
a. direct/indirect
b. ceiling/suspended
c. fluorescent
d. extruded aluminum
e. fixture= litecontrol le-90
lamp= sylvania
f. direct/indirect, 32w, 2 lamps in each illuminaire
g. aluminum and brushed nickel
h. none
c. MR-16/task lighting is suspended from overhead. Additionally, there is cove lighting located along the perimeter of the ceiling that provides general illuminance and an ambient glow.
d. The space seemed a little dim for what I expected a hair salon would be. There was overall a good amount of general lighting in the space, but more overhead task lighting would help provide more light to the hairdressers who are focusing on cutting hair.
a. direct
b. suspended
c. mr-16/halogen
d. mirrored reflector
e. GE lighting
f. CBCP 525 lumens, 20 watt, 12 volt
g. metal and acrylic
h. acrylic
i. adjustable
j. non-dimming, instant start, internal ballast
k. dry
l. none
g. aluminum and brushed nickel
h. none
i. fixed
j. non-dimming, instant start, internal to illuminaire
k. dry
l. baffles
Jimmy John's
Leon's Hair Salon
a. Leon's is a hair salon.
b. The two types of lighting within the space are task lighting and ambient lighting.Jimmy John's
a. Jimmy Johns is a restaurant where food preparation and dining takes place.
b. Most of the lighting within Jimmy John's was geared towards task lighting. Accent lighting was also seen along the ceiling, being focused onto walls. Hanging pendants over dining tables acted as both task lighting and ambient lighting.
c. In the kitchen and prep room, ceiling installed fluorescents provided an ample amount of lighting for tasks. Recessed can lighting can be seen directly above the countertop, illuminating the counter and service area. Track lighting helped cast light onto the surrounding walls, and pendant lights provided a nice diffuse glow over the dining tables.
d. Overall, Jimmy Johns was successful in using a variety of lamps to acquire the appropriate amount of light within the establishment. My only recommendation would possibly be to provide more light to wash over the wall, to further illuminate the space and accentuate the art work hanging on the walls.
a. direct/downlighting
b. ceiling/pendant suspending
c. compact fluorescent bulb
d. light fixture= extruded aluminum
e. light fixture= uncertain but close to Mulinello
bulb= bulbrama
f. each fixture contained 1 bulb, 40 watt, 2750 lumens
g. glass, red glazing
h. glass
i. fixed
j. instant start, internal to illuminaire
k. dry
l. none
Leon's Hair Salon
a. Leon's is a hair salon.c. MR-16/task lighting is suspended from overhead. Additionally, there is cove lighting located along the perimeter of the ceiling that provides general illuminance and an ambient glow.
a. direct
e. GE lighting
j. non-dimming, instant start, internal ballast
k. dry
Thursday, September 29, 2011
Wednesday, September 28, 2011
light sketch series 2
Fabrics 3 & 4A. The first fixture chosen was an LED lamp we had on hand. Originally labeled for under cabinet lighting, we chose to use this for our experiment in the same living room listed below. The lamp is manufactured by Shenzhen Hexinyu Tech. Co., Ltd and is labeled as HXY-120V1000A. It houses a total of 9 small LED lamps, in rows of three.
The second fixture chosen was from a ceiling fan, which uses four Sylvania incandescent bulbs -120V/25W. This ceiling fan is located in a living room with cream-colored walls, white trim, a dark red microfiber couch and wood floors and accent furniture. There are three windows that bring in natural light from South and Eastern directions, although the pictures were taken in the evening.
Part II
• record the change in color of the fabric samples by taking photographs and your subjective reactions to the appearance of colors in the different settings. Don’t use flash!
Fabric 1:
a wheat colored microfiber that can be used for covering furniture. Placing this fabric on different colored backgrounds really showed a variation in the lighting effects. First, we placed it on a wooden table directly under the ceiling fan. It took on a very warm, almost reddish tone – really picking up the reds from the table. Next, we placed the same fabric sample on a white glossy painted surface and the color appeared almost brown, hints of red but with light sage color with hints of gray.
Next, we held up the LED light next to the microfiber fabric on both surfaces. We definitely noticed how the light traveled across the fabric differently between the two light sources and surfaces.
This LED gave a accent light effect that is usually used to show importance and have something be noticed. The wrinkles in the fabric were definitely more noticeable and the fabric color, on the wooden surface, looked very greenish but washed out - almost unrecognizable from the other light source. On the white surface, the LED took on less of an accent effect and the color gradient along the fabric was less noticeable. The fabric took on a brown/canvas color and not as washed out as previously viewed.
Fabric 2:
cream-colored sheer lace-curtain panel with green, yellow, red and peach/pink colored flowers woven through it. Putting this fabric on the wooden surface, the color from the wood really made a difference in how the fabric took the light. It created a very warm, reddish color – picking up a lot of red from the wood table. The colors of the flowers appeared completely different in color and it was hard to really distinguish the various flower colors. There was absolutely no glare from the light at all onto the fabric.
When placing this lace panel onto the white surface with the LED light, we immediately noticed the glare from the light. Colors were more distinguishable in the fabric, however the light really seemed to be more intense in a certain spot and really fad off quickly across the edges. There was an overall greenish tone to the fabric with the LED lamp too.
• do you notice any aspect of Flynn’s subjective impressions?
Absolutely. The ceiling fan lamps (Sylvania incandescent 120v/25W), these are a warmer light, which would be deemed appropriate since Flynn states that, “a warm atmosphere suggests
friendliness or coziness..” this is exactly the type of atmosphere that one would generally want to create in their living room. The impression left on us from the LED lighting tones, gave us a slight uneasy feeling and was not calming.
• based upon your observations and reflections, provide recommendations for improving the lighting environment.
There is definitely a need for more various lighting fixtures in the living room studied. There is currently one other fixture in this room with a now standard fluorescent lamp giving off the equivalent of 60Watts, it leaves parts of the room darker than others. The overhead ceiling fan is usually not used for lighting because it gives off a bit of glare when trying to watch television or reading. Additional fluorescent lamp fixtures on opposite sides of the room would offer a more even, pleasing glow for gatherings or reading.
The LED fixture is not used by either group members for anything other than lighting for studio projects, however using them as under counter lighting may be successful if there were more than one lighting a counter. There is a port to attach another fixture to this one, which would create a total of 18 small LED lamps shining down on a counter, and that would be successful counter lighting provided that the counter was not an ultra shiny material or a polished granite which could create more glare than desired. Overhead lighting would also give a more accurate account of food colors when prepping meals.
The second fixture chosen was from a ceiling fan, which uses four Sylvania incandescent bulbs -120V/25W. This ceiling fan is located in a living room with cream-colored walls, white trim, a dark red microfiber couch and wood floors and accent furniture. There are three windows that bring in natural light from South and Eastern directions, although the pictures were taken in the evening.
Part II
• record the change in color of the fabric samples by taking photographs and your subjective reactions to the appearance of colors in the different settings. Don’t use flash!
Fabric 1:
a wheat colored microfiber that can be used for covering furniture. Placing this fabric on different colored backgrounds really showed a variation in the lighting effects. First, we placed it on a wooden table directly under the ceiling fan. It took on a very warm, almost reddish tone – really picking up the reds from the table. Next, we placed the same fabric sample on a white glossy painted surface and the color appeared almost brown, hints of red but with light sage color with hints of gray.
Next, we held up the LED light next to the microfiber fabric on both surfaces. We definitely noticed how the light traveled across the fabric differently between the two light sources and surfaces.
This LED gave a accent light effect that is usually used to show importance and have something be noticed. The wrinkles in the fabric were definitely more noticeable and the fabric color, on the wooden surface, looked very greenish but washed out - almost unrecognizable from the other light source. On the white surface, the LED took on less of an accent effect and the color gradient along the fabric was less noticeable. The fabric took on a brown/canvas color and not as washed out as previously viewed.
Fabric 2:
cream-colored sheer lace-curtain panel with green, yellow, red and peach/pink colored flowers woven through it. Putting this fabric on the wooden surface, the color from the wood really made a difference in how the fabric took the light. It created a very warm, reddish color – picking up a lot of red from the wood table. The colors of the flowers appeared completely different in color and it was hard to really distinguish the various flower colors. There was absolutely no glare from the light at all onto the fabric.
When placing this lace panel onto the white surface with the LED light, we immediately noticed the glare from the light. Colors were more distinguishable in the fabric, however the light really seemed to be more intense in a certain spot and really fad off quickly across the edges. There was an overall greenish tone to the fabric with the LED lamp too.
• do you notice any aspect of Flynn’s subjective impressions?
Absolutely. The ceiling fan lamps (Sylvania incandescent 120v/25W), these are a warmer light, which would be deemed appropriate since Flynn states that, “a warm atmosphere suggests
friendliness or coziness..” this is exactly the type of atmosphere that one would generally want to create in their living room. The impression left on us from the LED lighting tones, gave us a slight uneasy feeling and was not calming.
• based upon your observations and reflections, provide recommendations for improving the lighting environment.
There is definitely a need for more various lighting fixtures in the living room studied. There is currently one other fixture in this room with a now standard fluorescent lamp giving off the equivalent of 60Watts, it leaves parts of the room darker than others. The overhead ceiling fan is usually not used for lighting because it gives off a bit of glare when trying to watch television or reading. Additional fluorescent lamp fixtures on opposite sides of the room would offer a more even, pleasing glow for gatherings or reading.
The LED fixture is not used by either group members for anything other than lighting for studio projects, however using them as under counter lighting may be successful if there were more than one lighting a counter. There is a port to attach another fixture to this one, which would create a total of 18 small LED lamps shining down on a counter, and that would be successful counter lighting provided that the counter was not an ultra shiny material or a polished granite which could create more glare than desired. Overhead lighting would also give a more accurate account of food colors when prepping meals.
Monday, September 19, 2011
Thursday, September 15, 2011
Tuesday, September 13, 2011
assignment 1.0 : analysis
assignment : Analyze one of the 20 Solar Decathlon projects....
i have the pleasure of analyzing The Southern California Institute of Architecture and the California Institute of Technology = CHIP
Here's where CHIP took it's form!
Read More on this article at www.solardecathlon.gov
diagram by Cassandra Brunson
photo and article credit, http://www.solardecathlon.gov/team_sci_arc_caltech.html
i have the pleasure of analyzing The Southern California Institute of Architecture and the California Institute of Technology = CHIP
Here's where CHIP took it's form!
"CHIP is a real-life application of green design in the modern world created by the Southern California Institute of Architecture and California Institute of Technology for the U.S. Department of Energy Solar Decathlon 2011. CHIP offers a solution to the challenges of home ownership and energy consumption. While appearing to be a house of the future, this "prototype to product" is ready to be injected into the Los Angeles landscape after it returns from Washington, D.C.
Design Philosophy
California's soaring land costs and urban sprawl are the motivating factors behind CHIP's design. CHIP is an affordable dwelling with a small footprint that can be used as infill or placed in zoning that accommodates shared lots. CHIP features a flexible central space with large apertures that can open for coastal life in Southern California and solar shades and insulation panels that can accommodate a cozy evening in the Sierras.
Features
Unique features of CHIP include:
A geometry that results from lifting the north side to create a car park
A vinyl-coated fabric mesh that protects the house and contains the "outsulation" that envelops the structure
An interior stepped in multiple levels to distinguish one space from another without compartmentalization."
Read More on this article at www.solardecathlon.gov
diagram by Cassandra Brunson
photo and article credit, http://www.solardecathlon.gov/team_sci_arc_caltech.html
Monday, September 12, 2011
Sunday, September 11, 2011
assignment 2.0 : schematic design
This is my current place of residence : here's a few ways I use it : I will eventually take the problems of this place : become the client : then solve the problems of this space, while following the rules of the US Department of Energy Solar Decathlon! Once in a lifetime opportunity to design for myself : MY WAY!
Concept:
To create a space that will allows free flow thinking through openness and clutter free. A space that is realized through a series of steps and modularity.
Step into your creativity!
A new era of thinking and doing.
Saving money and
preserving the world for your
children has never been done so
beautifully. This space is open
for enjoyment and unleashing one’s
creative spirit without the
technical sirens. The stair like facade
isn’t irony....it is a “literal” suggestion:
Step into your creativity.
Concept:
To create a space that will allows free flow thinking through openness and clutter free. A space that is realized through a series of steps and modularity.
Step into your creativity!
A new era of thinking and doing.
Saving money and
preserving the world for your
children has never been done so
beautifully. This space is open
for enjoyment and unleashing one’s
creative spirit without the
technical sirens. The stair like facade
isn’t irony....it is a “literal” suggestion:
Step into your creativity.
initial design
Following the trip to the Solar Decathlon in DC, I came back with an entirely new mind frame with exciting and new ideas....therefore, I decided to build the structure closer to my schematic design; who took the shape of steps. Previously, I felt that this design would be better suited for a building on a GRAND:er scale, but i think i can make it work. Therefore, I moved on to ideation #2, with only 2 days til deadline.
Final Design
